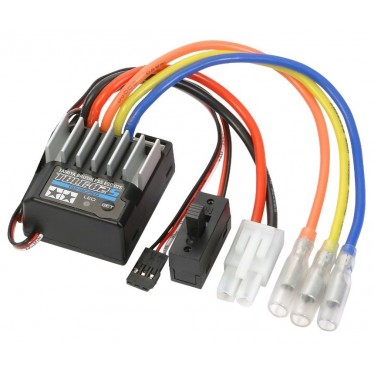

Tamiya TBLE-02S Brushed/Brushless ESC 45057
Product Code: 45057
Tamiya
This ESC is especially designed for use with the TBLM series of Tamiya Brushless Motors (Sensored-Type, 10.5T, 12.5T, 14.5T, 16.5T). Brake and neutral brake settings can be adjusted independently, and it features 3 protection systems against overheating, overloading and low voltage.
It is also compatible with brushed motors (Normal Type 540 and Sports-Tuned Motors 25 Turn or higher).
Note: When using servos with a current exceeding 1.5A, BEC output may be shut down.
Forward, Reverse, Braking (Reverse function may be disabled)
Input voltage: 6.6-7.2V
Dimensions: 42mmx34mmx25mm
Max. continuous current: 60A
Receiver output: 6V/1.5A
Weight: 50.8grams (including cables)
Protection systems: overheat, overload, low voltage (LiFe)
Compatible motors: TBLM series (sensored) Sport Tuned brushed motors 540 size over 25T
