Sky RC T100 Battery Charger UK SK-100162

Product Code: SK-100162

Sky RC

£45.99
Quantity: [-] [+]

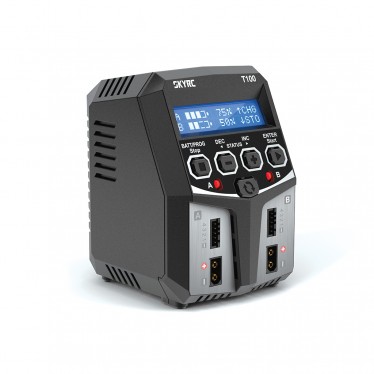

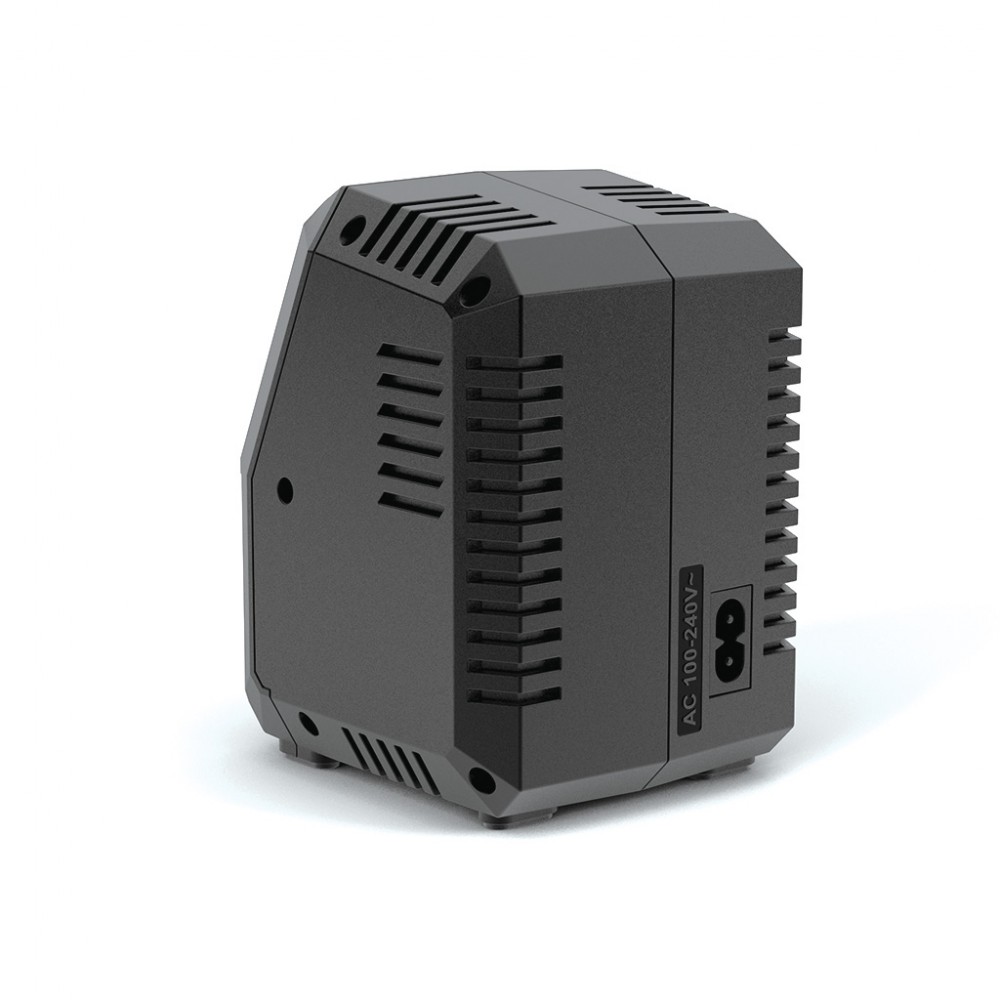

SKY RC T100 BATTERY CHARGER  SK-100162



SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more efficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries on cold days.



Twin-channel Charger - SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration. You can connect different chemistry(NiMH / NiCd / LiPo / LiFe / Lilon / LiHV / Pb)batteries into any of the charging ports.



AGM & Cold Charge Modes for PB Battery - SkyRC T100 can charge AGM(Absorbent Glass Mat) battery and also can be used for charging PB battery at very low temperatures.



Embedded XT60 Battery Connector - By embedding the XT60 battery connector in the charger, it is more convenient & safer for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.



Specifications

Size and Weight

Case Material: Plastic

Case Size: 90x100x127mm

Weight: 500g



Display

Display Type: 2x16LCD

Display Backlight: Blue



Power

Input Voltage: AC 100-240V

Charge Wattage: 50Wx2



Battery

Battery Types/Cells:

LiPo/LiFe/LiIon/LiHV: 2-4 cells

NiMH/NiCd: 6-8 cells

Pb:6/12V

Battery Capacity Range:

LiPo/LiIon/LiFe/LiHV:100-50000mAh

NiMH/NiCd:100-50000mAh

Pb: 100-50000mAh



Charge and Discharge

Charge Voltage

LiPo: 4.18-4.25V/cell

LiFe: 3.58-3.7V/cell

LiIon: 4.08-4.2V/cell

LiHV: 4.25-4.35V/cellNiMH/NiCd: Delta peak detection: 3-15mV/cell ; Default: 4mV/cell



Discharge Cut-off Voltage

LiPo:3.0-3.3V/cell

LiFe:2.6-2.9V/cellLiIon: 2.9-3.2V/cell

LiHV: 3.1-3.4V/cellNiMH/NiCd:0.1-1.1V/cell



Charge Current: 0.1A-5.0A

Balance Cells: 2-4 cells

Balance Current: 300mA/cell

Safety Timer: 1-720minutes & OFF

Charge Method:CC/CV for Lithium batteries.

Delta-peak Sensitivity for NiMH/NiCd batteries.

CC/CV and float charge for PB batteries.



Instructions

Includes UK 240v input lead and no charge or balance leads.
