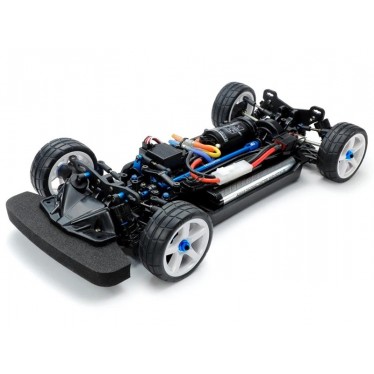

TAMIYA TT-02 TYPE SRX CHASSIS KIT SHAFT DRIVEN 4WD 1/10 58720 NO ESC

Tamiya is proud to welcome a new addition, TT-02 Type-SRX Chassis Kit - to the TT-02 Type-S Series which is popular among both beginners and race users. The TT-02 Type-SRX chassis kit is an upgraded version of the TT-02 Type-S Series with enhanced durability and performance for racing. This chassis kit uses Items 22049 and 22047 with updated parts. Also, parts included in this chassis kit are chosen (more cost-effective than buying each part) for users who want to learn setup before levelling up to middle class chassis.

FEATURES:

• This is a 1/10 scale R/C chassis assembly kit.
• Items 22049 (*1) and 22047 (*2) ensure ease of assembly and stable drivability.
• *1: Diff. joint cups are lightweight aluminum, and give a weight reduction of 7.8g compared to Item 22049?s standard ones.
• *2: Direct cups are designed for this chassis kit for improved durability.
• This chassis kit features reliable 4-wheel independent double wishbone suspension from Item 42345 (1/10 R/C TRF420 Chassis Kit) for effective setup.
• Newly shaped propeller joints are compatible with swing shaft protectors, and these parts have plastic parts at joint sections of stainless pins and aluminum joints to limit wear of parts.
• Uses Item 22054 which allows stable steering and cornering for superior performance at races.
• Rear drive shafts are 39mm size which are specific for this chassis. These also have a hard coat to enhance durability and lubricity.
• High speed gears and 27T pinion gears (gear ratio: 6.55: 1) are included as the kit-standard parts.
• TT-02 hi-torque servo saver gives steering angle to limit damage of steering and servo.
• Features full ball bearings.
• Comes with a carrying case dedicated for the TT-02 Type-SRX chassis.

HOP-UP OPTION PARTS (included):

• Item 22054: 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
• Item 22049: XV-02/TT-02 Oil Gear Differential Unit
• Item 22047: XV-02/TT-02 Front Direct Coupling Set (39T)
• Item 54981: 06 Module Hard Coated Aluminum Pinion Gear (27T)
• Item 54886: TRF419 Suspension Upgrade Set
• Item 54799: TT-02 Hi-Torque Servo Saver Set (w/Aluminum Horn)
• Item 54501: TT-02 Aluminum Propeller Shaft
• Item 54500: TT-02 High Speed Gear Set (68T)
• Item 53823: Clamp Type Aluminum Wheel Hub (5mm Thick)
• Item 53576: TRF Damper Oil Seal (4pcs.)
• Item 42357: Cross Joints for Low Friction Assembly Universal Shafts
• Item 42323: Short Ball Connector Nuts for TRF Dampers (8pcs.)
• Item 42143: 4mm Aluminum Serrated Wheel Nut (4pcs./Blue))
