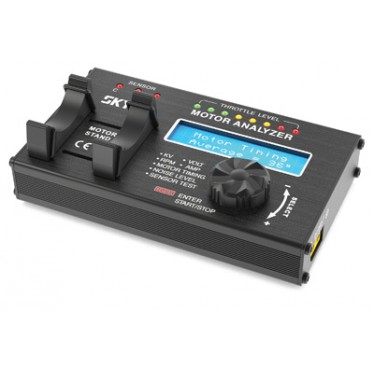

SkyRC Motor Analyzer SK-500020-01

Product Code: SK-500020-01

Sky RC

Out of Stock

SKYRC motor analyzer is a precision electronic device that is especially designed for measuring the KV value, RMP, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.

Specification

KV Value Accuracy: +/- 3%

Motor Timing Accuracy: +/- 4%

Motor Timing Range:0-70°

Noise Level Measurement Range : 60dB - 120dB

Dimension: 136.5mm x 80.6mm x 24.5mm

Net Weight: 282gram (Without Cable)

Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)

Current Drawn Less Than 30A at 8.4V Without Loading

Input Voltage 7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)

LCD Display Screen: Blue Backlight Background, White Text,16 Characters X 2 Lines
